Ductable 4.0 Ton Hyper Inverter
TUD24PHS1Key Features
- • Powerful Cooling & Heating
- • Hyper Inverter: Energy saving & Low voltage operation
- • High Static Pressure Range (0-275 Pa) for extended duct runs
- • Ultra-Slim design saves space in tight installations
- • Built-in Auto-Drainage system for Hassle-free condensate removal
- • Integrated Float switch for overflow protection
- • Smart Wifi Control
- • R32 refrigerant & refrigerant leakage detection for added safety

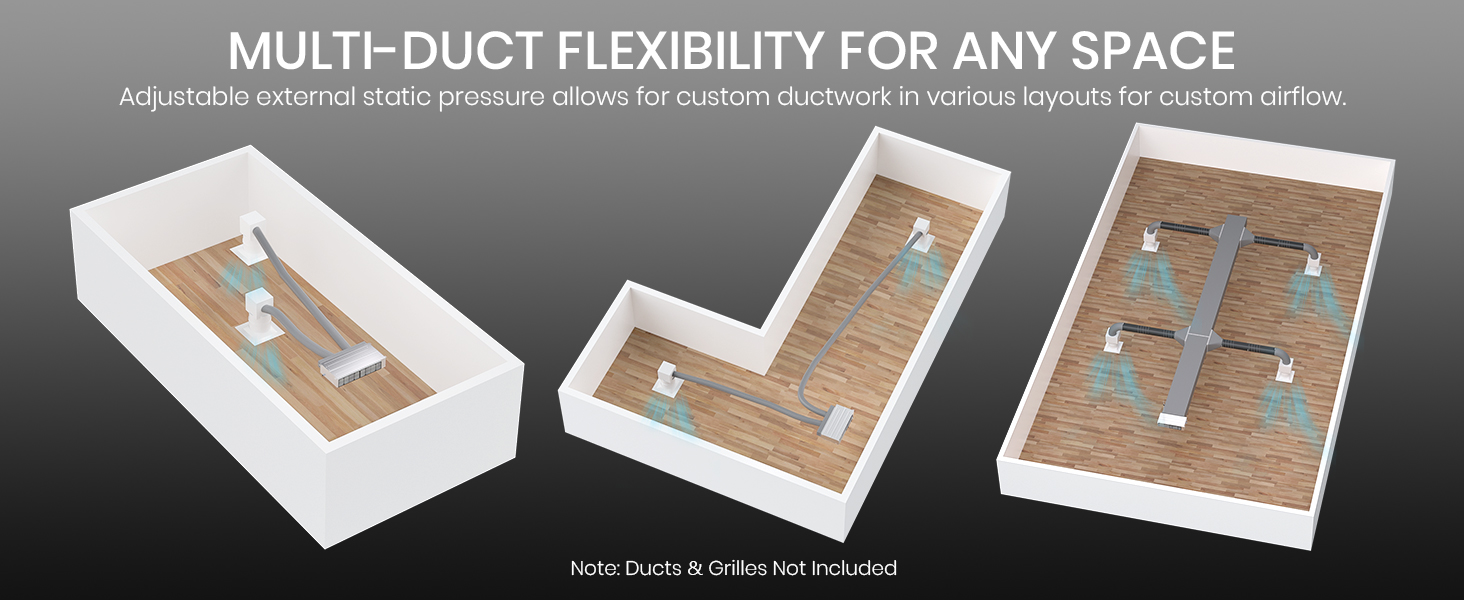

- • Flexible Installation with multiple airflow outlet options
- • 1 year Full Warranty & 10 Years Compressor Warranty
Price
NRs. 318,000
The TOSOT Cosmo ducted mini split offers strong cooling and heating with Strong airflow and multiple fan speeds
Cooling And Heating For Large Spaces
Large capacity with strong and powerful airflow, great for residential and light commercial use. Suitable for open layouts & large home spaces.

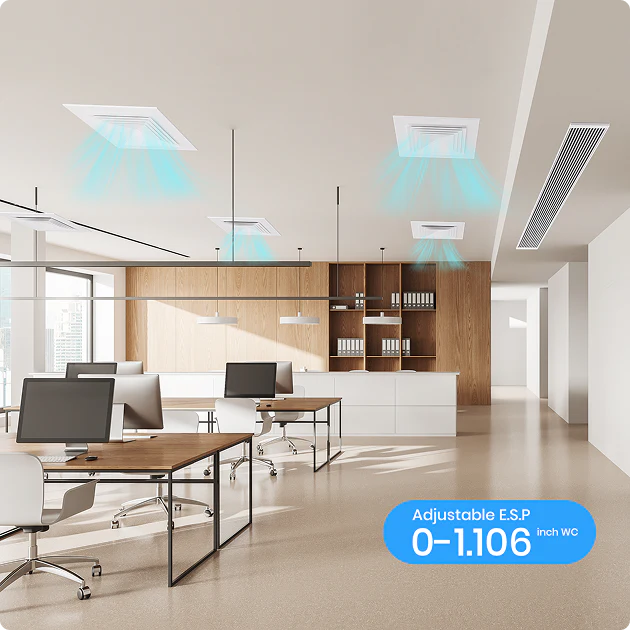

High Static Pressure Design
Designed for larger spaces and extended duct runs, this unit delivers adjustable external static pressure up to 1.106 in. WC (275 Pa). Ideal for high-ceiling areas and ductwork with multiple branches or bends—perfect for large residences and light commercial environments.

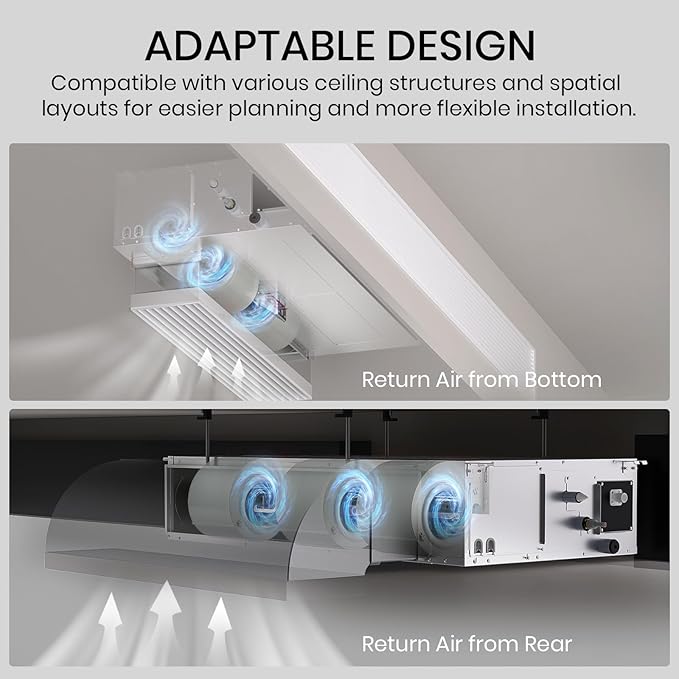

Side Discharge & Rear Return
A common installation choice.
This design suits spaces with partial dropped ceilings, requiring sufficient ceiling cavity depth for indoor unit and ductwork installation.
Typical applications include hotel corridor ceilings, office walkway ceilings, mall passageways, and tops of cabinets.
Ensure adequate access panels are provided for future maintenance and servicing.

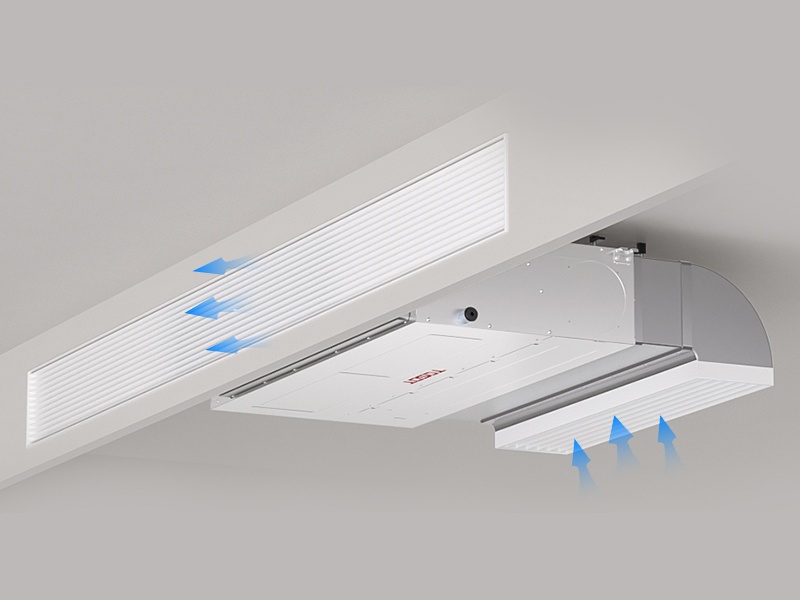

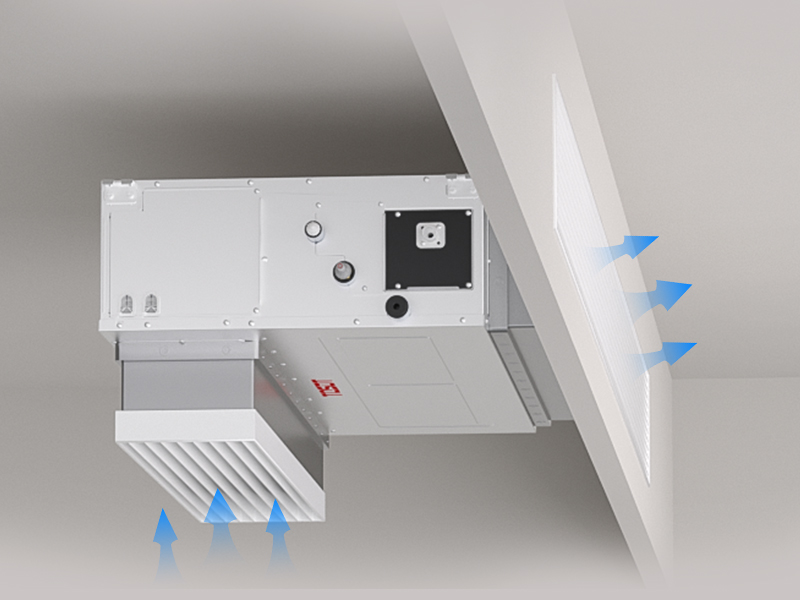

Side Discharge & Bottom Return
This design suits spaces with partial dropped ceilings, preserving overall ceiling height while accommodating shorter return air paths.
Installation may require flexible canvas duct and grilles (not included).
Typical applications include office partitions and residential living areas. The return air vents can be hidden above furniture such as TV cabinets or sofas.
Ensure adequate access panels are provided for future maintenance and servicing.

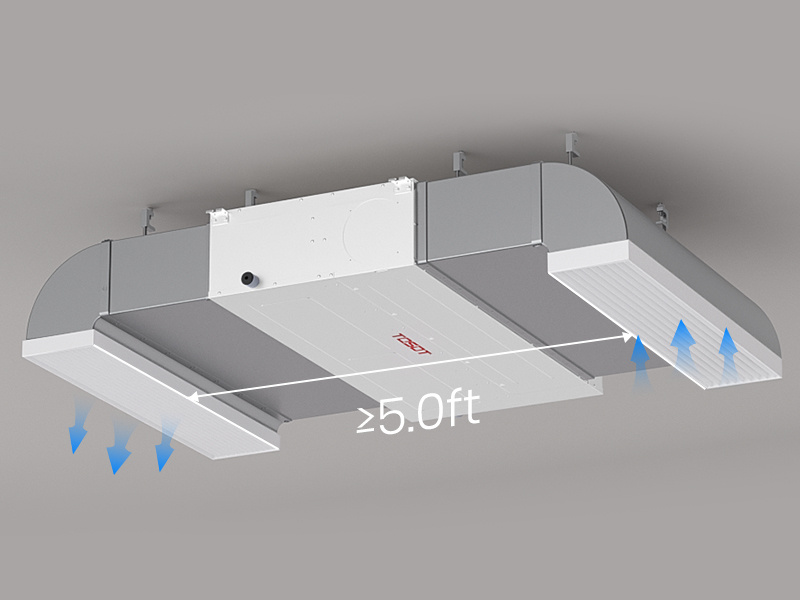

Bottom Discharge & Bottom Return
This design especially suits large open spaces without dropped ceilings, with both supply and return vents flush-mounted on the ceiling plane.
Typical applications include laboratories, large conference rooms, and residential open-plan layouts.
Ensure adequate access panels are provided for future maintenance and servicing.

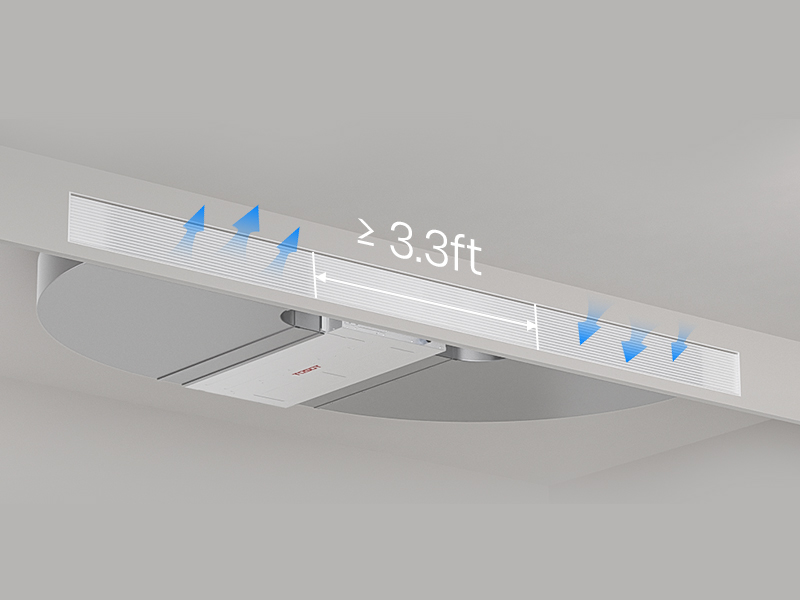

Side Discharge & Side Return
This design suits partial dropped ceilings with sufficient horizontal space for unit and duct installation.
Supply and return vents are installed in parallel with a minimum spacing of ≥3.3 ft
A ceiling-length grille (not included) can conceal supply and return air vents for seamless aesthetics.

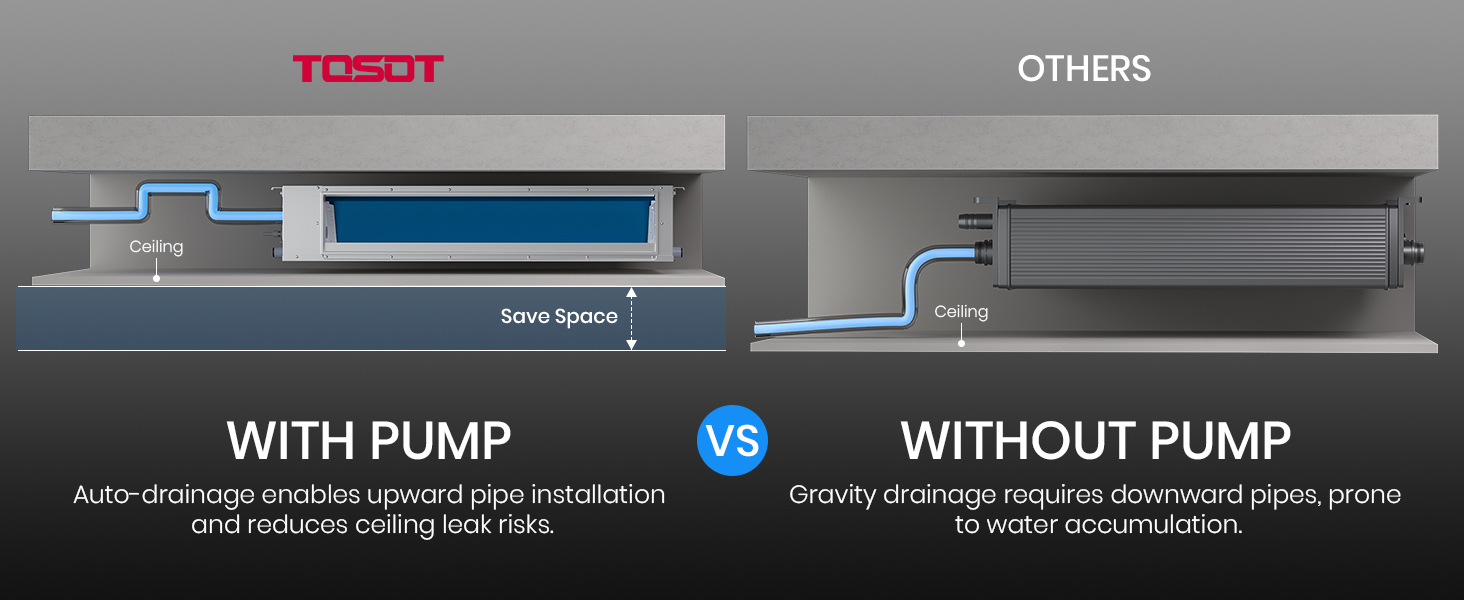

Automatic Water Drainage System
The integrated water pump eliminates gravity drainage limitations, allowing more flexible ductwork and slimmer ceiling profiles. No need for a continuous downward slope. Active drainage reduces the risks of water buildup in pipes and ceiling leak damage.

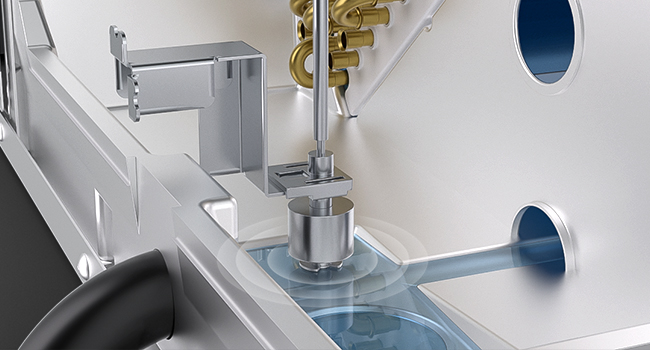

Float Switch Design
The built-in float switch monitors water condensation levels in real time. When water reaches a critical height, it triggers an alarm on the wired controller. It works with the drainage pump to ensure proper water discharge and prevent potential ceiling damage.

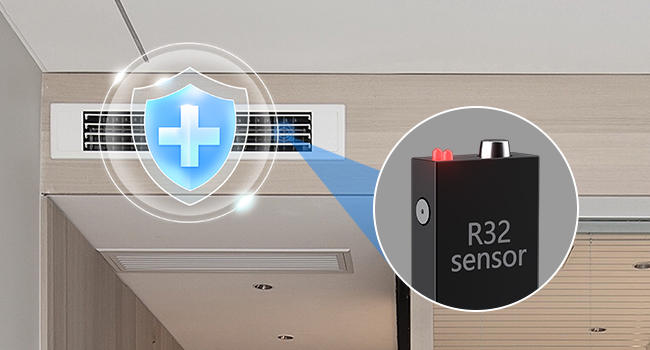

Refrigerant Leakage Sensor
A built-in detector monitors indoor refrigerant concentration levels in real time. If a leak occurs, it triggers an alert on the wired controller, warning you of potential hazards. It helps prevent exposure to refrigerant gases and allows for prompt maintenance.
